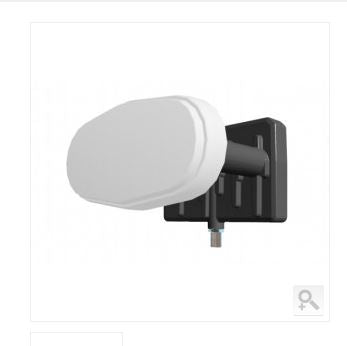

Inverto SINM20-TRPMN TRIPLE Single LB A19.2+H16+H13 80 cm

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	Alle details bekijken

€39,95

Geselecteerd door Asat.nl

Bij Asat.nl koop je niet alleen een product. Je krijgt deskundig advies en ondersteuning vóór én na je aankoop.

Service waarop je kunt rekenen

Persoonlijk advies, snelle levering en technische ondersteuning van echte vakmensen.

Inverto SINM20-TRPMN TRIPLE Single lnb 19.2+16+13 80 cm

This Triple Feed LNB is a monoblock LNBF for Ku-band satellite reception from orbital positions 13˚E, 16˚E and 19.2˚E in Central :European countries. It is intended to be installed with commercially available satellite dishes that have the following characteristics 85cm wide parabolic offset reflector • (40mm feed clamp with ~7mm profile (the LNB will be supplied with 40mm ring adaptor • F/D = 0.6 • (It receives a frequency range of 10.7 to 12.75GHz divided into Low Band (10.70 to 11.70GHz) and High Band (11.70 to 12.75GHz with either horizontal or vertical polarization. The LNB provides one switchable IF outputs (Single model). The output carries also power supply and control signals. Output port is F type. DiSEqC1.0 commands allow switching the output to a particular band “and orbital position. The DiSEqC ODU allocation is the following: “ODU A” corresponds to 16E, “ODU B” to 13E and “ODU C to 19.2E. As long as no DiSEqC command has been received, the selected orbital position is 16E (ie DiSEqC A). The LNB comprises three feeds, one for each orbital position. The feeds allow mounting into the feed clamp of the satellite dish. The feeds are marked .with “13˚E”, “16˚E” and “19.2˚E” and their respective DiSEqC positions. The LNB is supplied with 40mm plastic ring adapter.
